Pe-2 Series 35
URSS-Russian aviation red star.svg
Overview
TypeAircraft
RoleLight bomber
Availability
Part ofBattle of Moscow
Development statusReleased

The Pe-2 Series 35 is a Russian bomber and attack aircraft available as part of Battle of Moscow.

Gameplay[edit | edit source]

  • There is a light near the elevator trim control on the left side that lights up white when the elevator trim is at the 0% (neutral) setting.
  • The two gauges with "α" (alpha) on them at the top right of the panel indicate "air-fuel alpha" for the left and right engines. Air-fuel alpha is a percentage that relates to the fuel to air ratio (i.e., mixture). 100% is the perfect mixture (14.7:1) but going slightly richer "reduces combustion temps. which reduces your chances of preignition or detonation". Readings below 100% are richer (more fuel) and readings above 100% are leaner (less fuel). A reading of 0.9 (90%) gives you peak rpms.

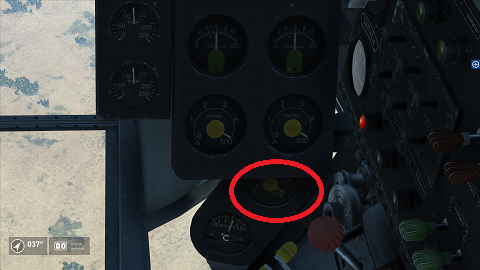

  • There are three fuel gauges on the Pe-2 Series 35. Two of the gauges are visible on the lower right panel, but the third one is tucked out of sight below the other two. You may need to occupy the rear gunner's seat momentarily to see the third gauge.
Pe-2 s35 Fuel Gauges.png
[Unconfirmed] There are two outer tanks and one inner tank in each wing and there is one fuselage tank (see this picture). Here are the fuel gauges for each tank:
    • The top left gauge is for the four outer wing tanks.
    • The top right gauge is for the two inner wing tanks.
    • The bottom gauge is for the fuselage tank.

Specifications[edit | edit source]

Indicated stall speed in flight configuration: 175..200 km/h
Indicated stall speed in takeoff/landing configuration: 148..169 km/h

Dive speed limit: 790 km/h
Maximum load factor: 11 G
Stall angle of attack in flight configuration: 13.9 °
Stall angle of attack in landing configuration: 9.8 °

Maximum true air speed at sea level, engine mode - Nominal: 434 km/h
Maximum true air speed at 2000 m, engine mode - Nominal: 476 km/h
Maximum true air speed at 5000 m, engine mode - Nominal: 521 km/h

Service ceiling: 9100 m
Climb rate at sea level: 9.3 m/s
Climb rate at 3000 m: 8.4 m/s
Climb rate at 6000 m: 5.6 m/s

Maximum performance turn at sea level: 30.5 s, at 270 km/h IAS.
Maximum performance turn at 3000 m: 39.9 s, at 270 km/h IAS.

Flight endurance at 3000 m: 3.7 h, at 300 km/h IAS.

Takeoff speed: 160..200 km/h
Glideslope speed: 220..240 km/h
Landing speed: 155..165 km/h
Landing angle: 12.5 °

Note 1: the data provided is for international standard atmosphere (ISA).
Note 2: flight performance ranges are given for possible aircraft mass ranges.
Note 3: maximum speeds, climb rates and turn times are given for standard aircraft mass.
Note 4: climb rates and turn times are given for Nominal power.

Engine:
Model: M-105RA
Maximum power in Nominal mode at sea level: 1020 HP
Maximum power in Nominal mode at 2000 m: 1100 HP
Maximum power in Nominal mode at 4000 m: 1050 HP

Engine modes:
Nominal (unlimited time): 2700 RPM, 910 mm Hg

Water rated temperature in engine output: 70..85 °C
Water maximum temperature in engine output: 100 °C
Oil rated temperature in engine output: 90..100 °C
Oil maximum temperature in engine output: 110 °C

Supercharger gear shift altitude: 2700 m

Empty weight: 6078 kg
Minimum weight (no ammo, 10% fuel): 6640 kg
Standard weight: 7697 kg
Maximum takeoff weight: 8712 kg
Fuel load: 1129 kg / 1505 l
Useful load: 2634 kg

Forward-firing armament:
12.7mm machine gun "UB", 150 rounds, 1000 rounds per minute, nose-mounted
7.62mm machine gun "ShKAS", 450 rounds, 1800 rounds per minute, nose-mounted

Defensive armament:
Top: 7.62mm machine gun "ShKAS", 750 rounds, 1800 rounds per minute
Belly: 12.7mm machine gun "UB", 200 rounds, 1000 rounds per minute
Side: 7.62mm machine gun "ShKAS", 225 rounds, 1800 rounds per minute

Bombs:
Up to 10 x 104 kg general purpose bombs "FAB-100M"
Up to 4 x 254 kg general purpose bombs "FAB-250sv"
Up to 2 x 512 kg general purpose bombs "FAB-500M"

Rockets:
10 x 23 kg rockets "ROS-132", HE payload mass 9.1 kg

Length: 12.69 m
Wingspan: 17.12 m
Wing surface: 40.8 m^2

Combat debut: July 1941

Additional Configurations[edit | edit source]

10 x 104 kg General Purpose Bombs FAB-100M
Additional mass: 1040 kg
Ammunition mass: 1040 kg
Estimated speed loss before drop: 23 km/h
Estimated speed loss after drop: 0 km/h

4 x 254 kg General Purpose Bombs FAB-250sv
Additional mass: 1016 kg
Ammunition mass: 1016 kg
Estimated speed loss before drop: 33 km/h
Estimated speed loss after drop: 0 km/h

2 x 512 kg General Purpose Bombs FAB-500M
Additional mass: 1024 kg
Ammunition mass: 1024 kg
Estimated speed loss before drop: 48 km/h
Estimated speed loss after drop: 0 km/h

10 x 132mm High Explosive unguided rockets ROS-132
Additional mass: 280 kg
Ammunition mass: 230 kg
Racks mass: 50 kg
Estimated speed loss before launch: 31 km/h
Estimated speed loss after launch: 20 km/h

RPK-2 fixed loop radio compass for navigation with radio beacons
Additional mass: 20 kg
Estimated speed loss: 2 km/h
